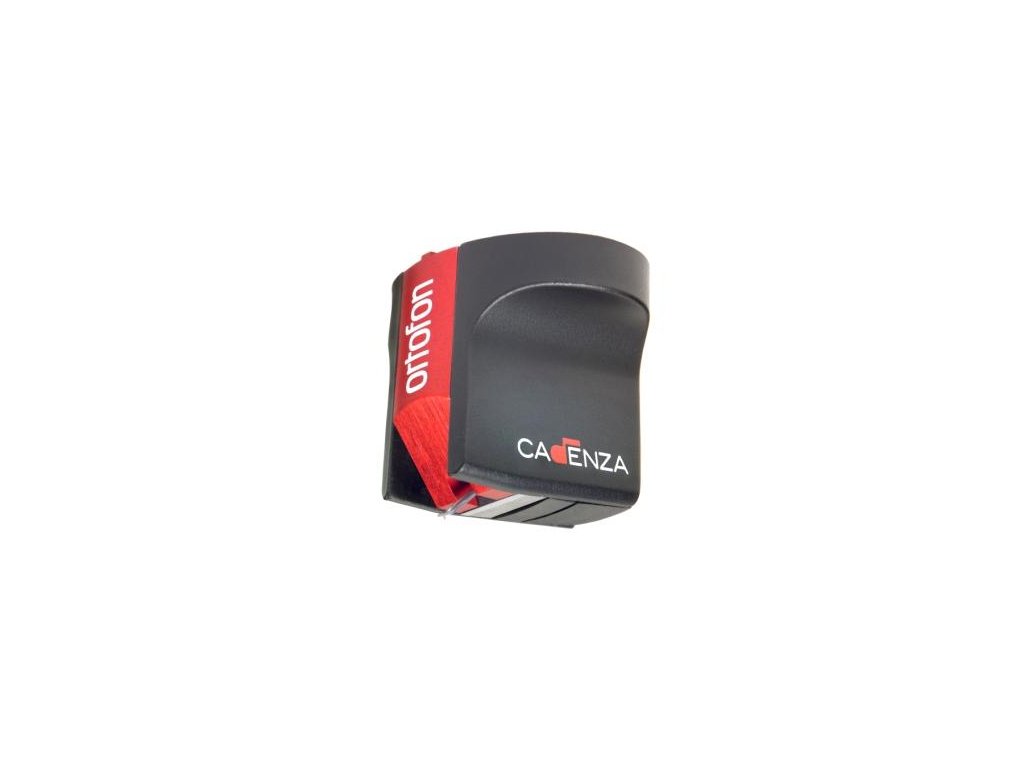

ORTOFON Cadenza Red
Detailní popis produktu
Technical Data Values Output voltage at 1 kHz 5 cm/sec 450 ?V Channel balance Channel separation at 1 kHz > 23 dB Channel separation at 15 kHz > 15 dB Frequency range at -3 dB 20 Hz - 50 kHz Frequency response 20 Hz - 20 kHz -3 Tracking ability at 315 Hz at recommended tracking force *) 80 ?m Compliance, dynamic, lateral 12 ?m/mN Stylus type Nude fine line, Al. cantilever Stylus tip radius r/R 8/40 Tracking force range 2,2-2,7 g (22-27 mN) Tracking force recommended 2,5 g (25 mN) Tracking angle 20? Internal impedance, DC resistance 5 Ohm Recommended load impedance 50-500 Ohm Cartridge body material Stainless steel Aluminium Cartridge colour Red/Black Cartridge weight 10,7 gDoplňkové parametry
Kategorie: | MC |
---|---|
Záruka: | 2 roky |
